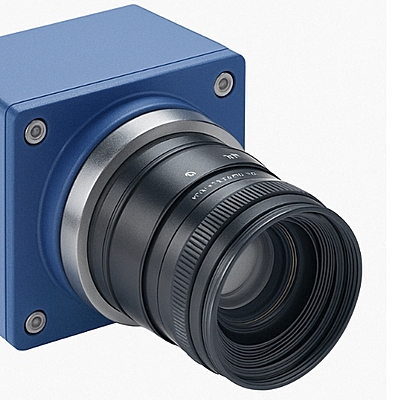

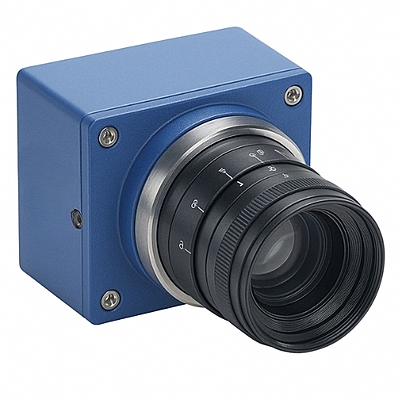

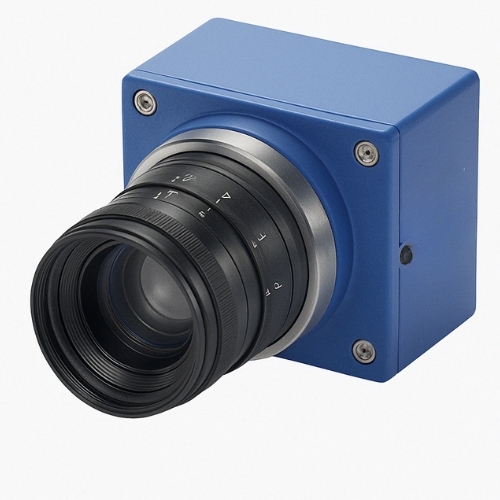

Matrix mvBlueCOUGAR-X105bC Camera
Price:
₹90,153.60
Out of stock
Industrial camera, Sensor type Vision=CMOS 2/3" color global, Image resolution=5.1 MP (2464 x 2056 pixels), Frame rate=max. 35 fps, Switching output=4x PNP normally open (NO), Interface 01=Gigabit Ethernet
Description
1.High‑quality color imaging for industrial inspection, automation, and measurement 2.Global shutter ensures distortion‑free capture of fast-moving objects 3.GigE Vision interface allows long cable runs and remote triggering 4.Flexible I/O control enables direct hardware integration and sequencing 5.Robust design: compact metal housing, optional IP67, supports industrial environments 6.Advanced onboard processing: LUTs, flat‑field correction, real‑time event/event control via GenICam 7.Multi‑Camera Synchronization: supports precise triggering and coordination between multiple cameras
1.Sensor: 2/3″ color CMOS global shutter, effective resolution 2464 × 2056 (≈ 5.1 MP) 2.Frame Rate: Up to 35 fps in full resolution 3.Interface: Gigabit Ethernet (GigE Vision compliant) with standard (or optional PoE) 4.Lens Mount: C‑Mount (standard) 5.I/Os: 4 PNP switching outputs (camera‑side), plus optional galvanically isolated inputs/outputs 6.Image Formats: BayerColor8/10/12/16, Mono12, etc. 7.Trigger Modes: Free‑running, software, hardware‑triggered; flash control and sequencer support 8.Physical Size: approx. 39.8 × 39.8 × 50 mm (width/height/depth without lens) 9.Weight: ~200 g (without lens) 10.Power: 10–28 VDC (standard) or Power over Ethernet (PoE version) 11.Operating Temp: Standard housing; rugged variants available (e.g., IP67)
