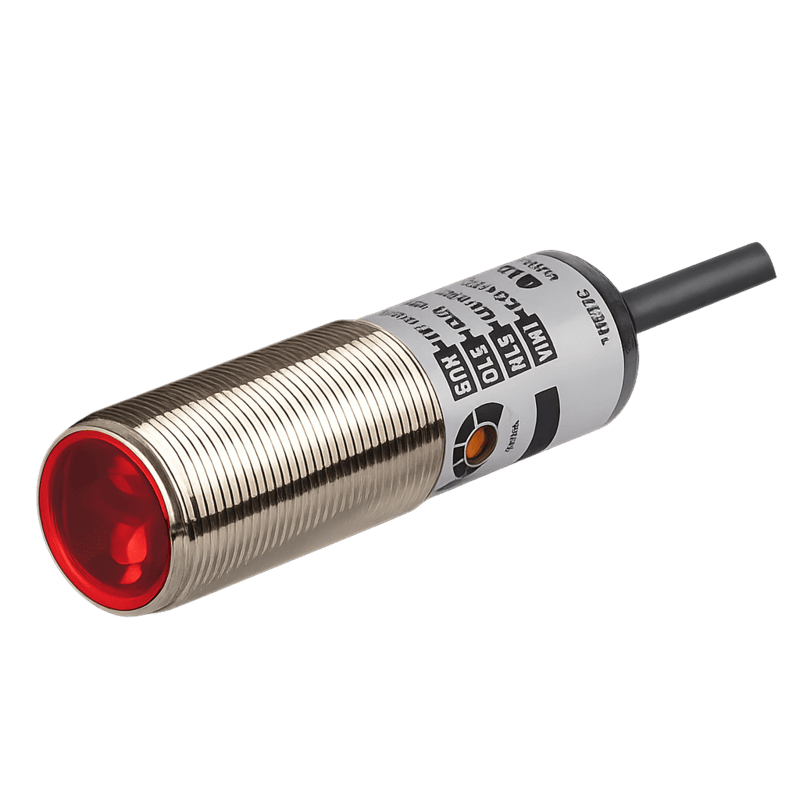

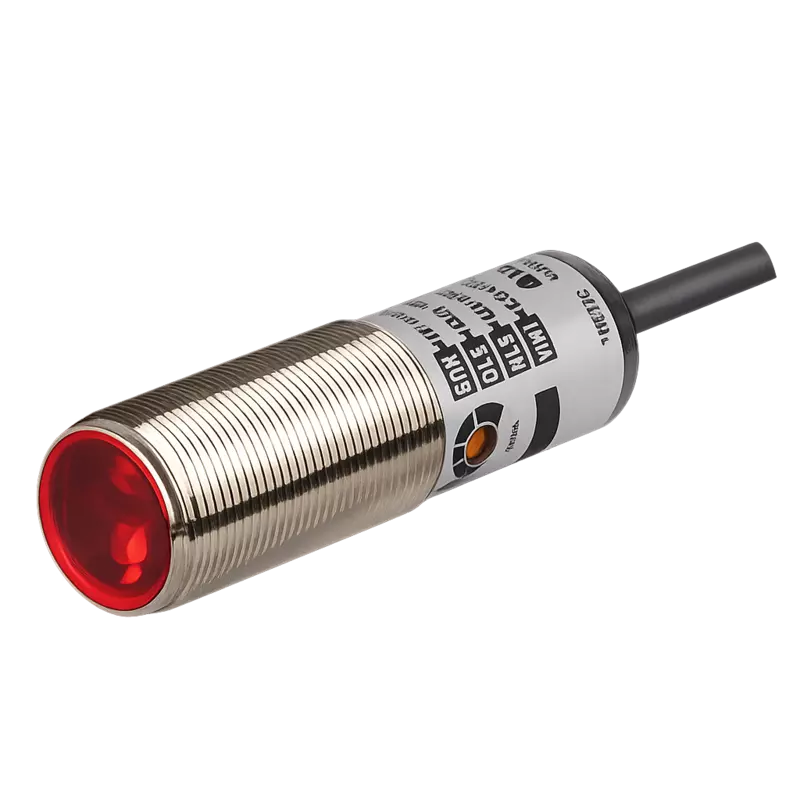

Autonics BRQ Front-Sensing Diffuse Reflective Photoelectric Sensors
- 1 m front-sensing diffuse reflective photoelectric sensor for direct object detection without separate reflector
- Integrated sensor body with PNP Open Collector Output and M12 4-pin Connector configuration
- Suitable for short to medium distance industrial sensing of opaque and translucent targets
- 10-30 VDC operation, ≤ 1 ms response time, and sensitivity adjustment for automation equipment
- Brass Ni-plated M18 cylindrical body with IP67 protection for compact industrial installation
Product Details
Key Features
Autonics BRQ Front-Sensing Diffuse Reflective Photoelectric Sensor, 1 m, PNP Open Collector Output, M12 4-pin Connector
This BRQ front-sensing diffuse reflective variant is configured for 1 m sensing distance with PNP Open Collector Output and m12 4-pin connector construction. It detects targets directly by reflected light from the object and is well suited for machine automation, conveyors, parts handling, and compact industrial sensing tasks.
The sensor uses an integrated brass Ni-plated M18 cylindrical body with 10-30 VDC supply, sensitivity adjustment, and ≤ 1 ms response time. Diffuse reflective sensing is a practical choice when a separate emitter/receiver pair or reflector is not preferred and the application falls within the specified sensing range.
This exact variant should be chosen when you need 1 m sensing, PNP Open Collector Output, m12 4-pin connector, and IP67 protection in a front-sensing photoelectric sensor format.
Specifications
- Sensing TypeDiffuse Reflective
- Supply Voltage10–30 VDC
- Light SourceRed
- Protection RatingIP67
- Mounting / Body SizeCylindrical M18
