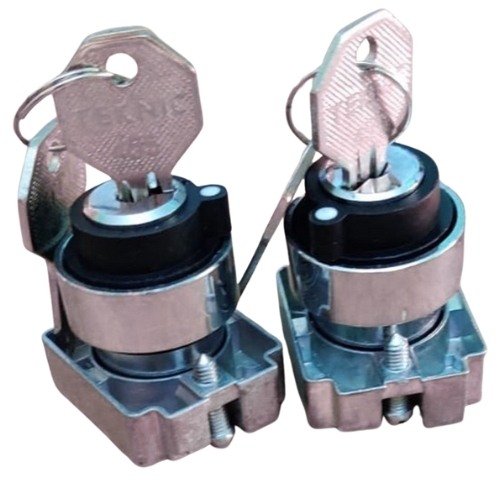

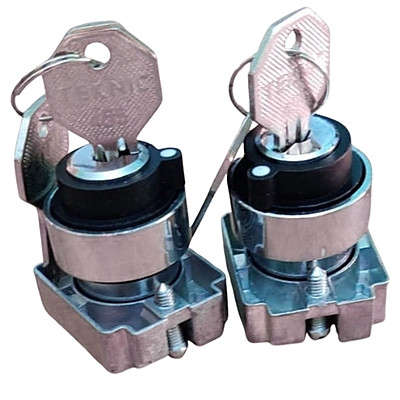

Teknic - Spring return Key Switch 2 Position
Non-returnable
Price:
₹250.00
Teknic 2-position spring-return key switch is a 22 mm panel-mount key switch with two maintained positions (e.g., ON–OFF), spring-returning to the default state. It features durable metal construction, self-wiping contacts, and screw-terminal connections, making it ideal for secure, keyed control in industrial environments.
Product Details
1. Operation Type: Spring return from right to left, ensuring the switch returns to its default position after activation. 2. Key Removal: Key is removable only in the left (default) position, enhancing security by preventing unauthorized access when the key is not in place. 3. Mounting: Standard 22.5 mm panel cutout, facilitating easy integration into control panels. 4. Construction: Robust metallic build, suitable for demanding industrial environments. 5. Contact Configuration: Typically supports configurations like 1 Normally Open (NO) contact. 6. Applications: Ideal for machinery control, access restriction, and other applications requiring secure switch operations.
1. Model: 2AK2-2POSR 2. Mounting Hole Size: 22.5 mm diameter 3. Material: Metal operator 4. Contact Configuration: 1 Normally Open (NO) contact 5. Terminal Type: Screw terminals 6. Protection Rating: IP65 7. Certifications: CE, CSA, UL, IEC, VDE 8. Operating Temperature: -20°C to +60°C 9. Mechanical Life: 3,000,000 operations 10. Electrical Ratings: Voltage: 24-230V AC/DC Current: 10A
