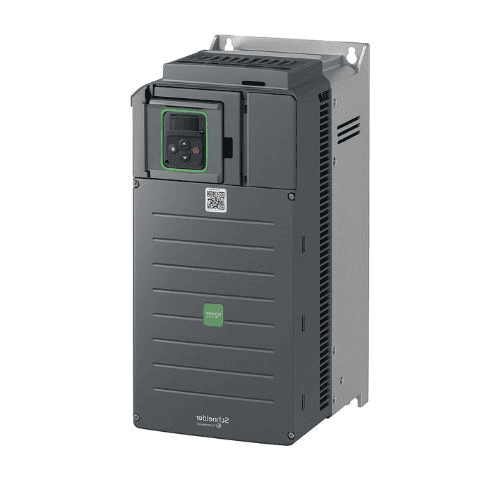

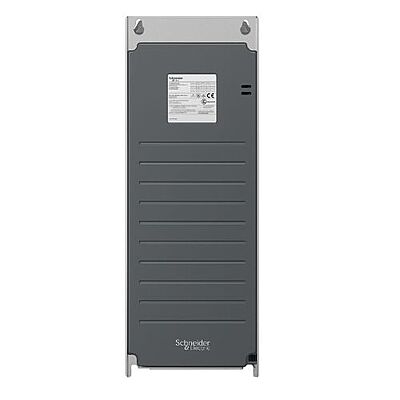

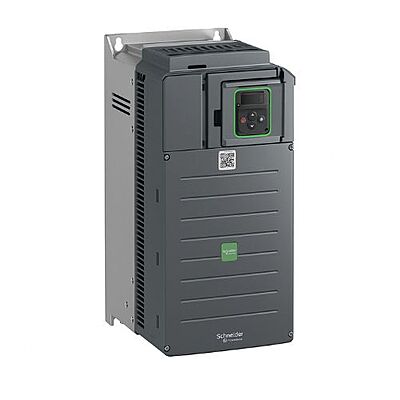

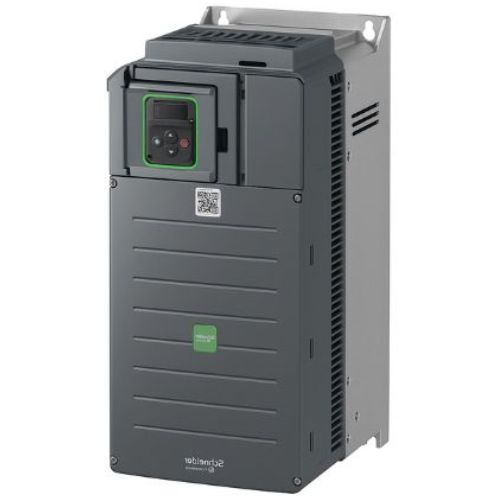

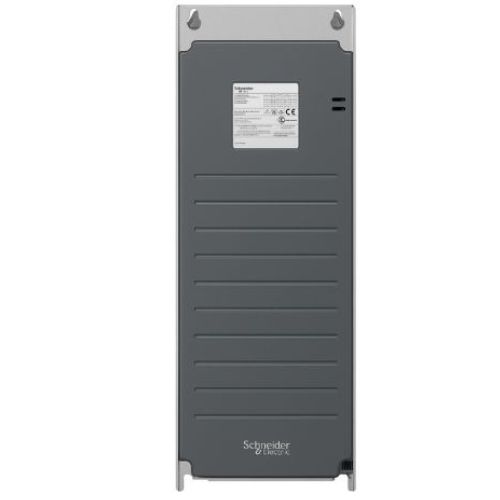

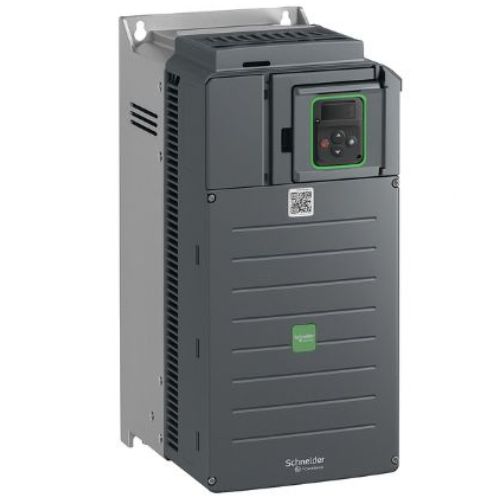

Schneider VFD ATV610D30N4 30 kW/40 HP - 380...415 V - IP20
Non-returnable
Price:
₹87,837.00
Out of stock
Schneider VFD ATV610D30N4 30 kW/40 HP - 380...415 V - IP20
Customize
1. Drive Protections: Includes thermal protection, overcurrent protection, short-circuit protection, overvoltage and undervoltage protection, phase loss detection, and overspeed protection. 2. Motor Protections: Thermal protection and phase break detection. 3. EMC Compliance: Integrated EMC filter conforming to IEC 61800-3 Category C3. 4. Communication Protocol: Modbus serial over 2-wire RS485 interface. 5. Connector Type: 1 RJ45 port on the remote graphic terminal for Modbus serial communication. 6. Option Slot (Slot A): Supports communication cards (e.g., Profibus DP V1), digital or analog I/O extension cards, and relay output cards. 7. Plug & Play: Factory-preset parameters for quick commissioning
1. Rated Power: 30 kW (40 HP) for normal duty; 22 kW (30 HP) for heavy duty 2. Input Voltage: 380–460 V AC, 3-phase, 50/60 Hz 3. Line Current: 62.5 A at 380 V (normal duty); 49.7 A at 380 V (heavy duty) 4. Overload Capacity: 120% for normal duty; 150% for heavy duty applications 5. Protection Rating: IP20 6. Cooling Method: Forced convection 7. Communication: 2-wire RS485 Modbus serial interface 8. Output Frequency Range: 0.1 to 500 Hz 9. Switching Frequency: Adjustable from 2 to 12 kHz 10. Cooling Method: Forced convection 11. Noise Level: 75 dB, conforming to 86/188/EEC
