Matrix mvBlueGEMINI Smart Color Industrial Camera for Vision Inspection and Quality Control

Matrix mvBlueGEMINI Industrial Color Camera for Factory Automation and Precision Quality Inspection

AI-Enabled Smart Color Camera by Matrix for Machine Vision and Embedded Industrial Applications

High-Performance Smart Vision Camera – Matrix mvBlueGEMINI for Color Detection

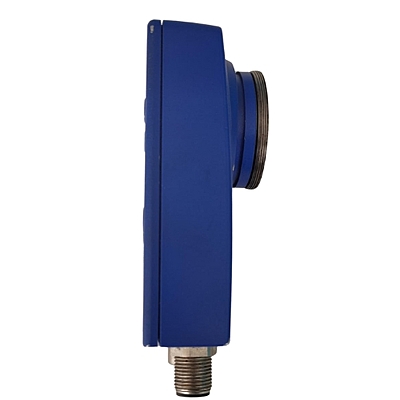

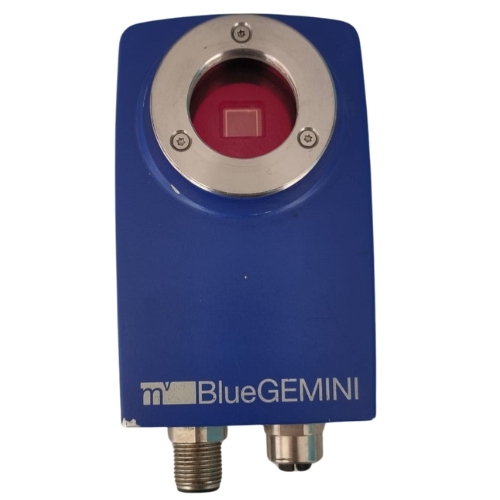

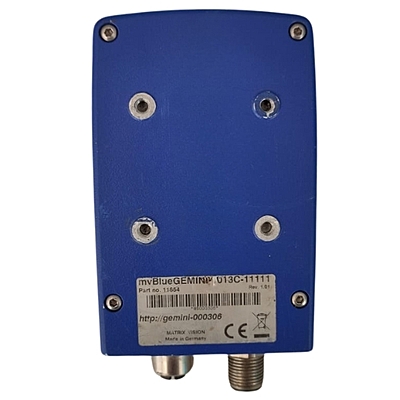

Matrix mvBlueGEMINI Smart Color Camera

Name: Matrix mvBlueGEMINI Smart Color Camera
Brand: Matrix -Vision
SKU: mvBlueGEMINI-C
Price: 132493.0 INR
Availability: InStock

Non-returnable

Price:

₹132,493.00

Next-Gen Smart Vision System for Industrial Inspection and Automation.Matrix mv Blue GEMINI Camera Features for Smart Factory Applications The Matrix mv Blue GEMINI Smart Color Camera is a compact, high-speed industrial vision system equipped with onboard processing, making it ideal for real-time inspection tasks. With dual-core ARM processing, color image acquisition, and support for Halcon machine vision software, this smart camera enables seamless object detection, pattern recognition, barcode reading, and surface defect detection. It's optimized for embedded AI, edge computing, and integration with PLCs, robotic systems, and quality control stations. Ideal for industries like pharmaceuticals, packaging, electronics, and automotive assembly lines.

Description

Features / Functions 1. Smart camera for industrial inspection applications. 2. Embedded Linux operating system. 3. Web-based user interface for configuration via PC, tablet, or smartphone. 4. Configuration software: mvIMPACT Configuration Studio (mvIMPACT-CS). 5. IP67-rated housing for industrial environments. 6. Low power consumption. 7. Robust I/O and Ethernet interfaces. 8. Passive cooling (no fan). 9. Mounting options (e.g., tripod adapters).

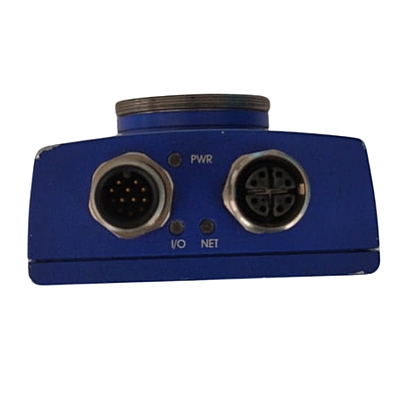

Specifications 1. Image Sensor: e2v EV76C560 (CMOS) 2. Resolution: 1280 × 1024 (1.3 MP) 3. Sensor Size: 1/1.8" 4. Pixel Size: 5.3 µm × 5.3 µm 5. Shutter Type: Pipelined / Global 6. Exposure Time: 10 µs to 1 s 7. ADC Resolution: 10-bit → 8-bit companded 8. SNR: 41 dB 9. Dynamic Range: 62 dB 10. Trigger: Hardware & Software 11. Color Versions: Color (C) 12. Processor: Dual-Core Cortex-A9 @ 800 MHz 13. Memory (RAM): 1 GB DDR3 SDRAM 14. Storage: 4 GB NAND Flash 15. Digital I/O: 6 I/Os (configurable: In, Out, Trigger, Flash) 16. Power Supply: 12–24 V DC (±10%) 17. Protection: Reverse polarity, overtemp, short-circuit 18. LAN: Gigabit Ethernet (M12 X-coded) 19. Power / I/O: 12-pin M12 connector 20. Protection Class: IP67 (dust/waterproof) 21. Operating Temp.: 0 °C to +55 °C (without airflow) 22. Storage Temp.: –25 °C to +70 °C

Datasheet
