Leuze KFX-ETC-420 - Plastic fiber optics type diffuse reflective
Price:
₹4,741.00

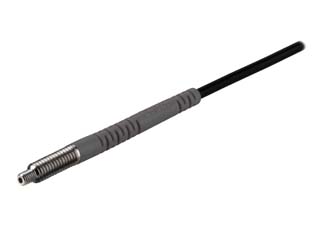

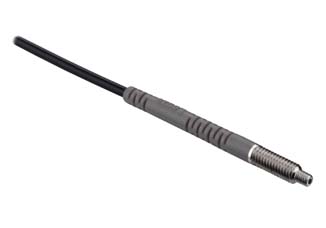

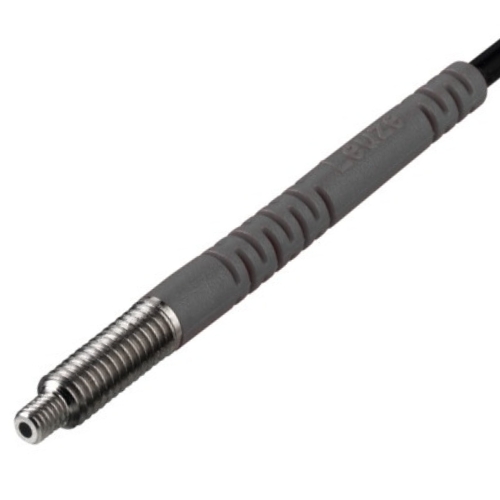

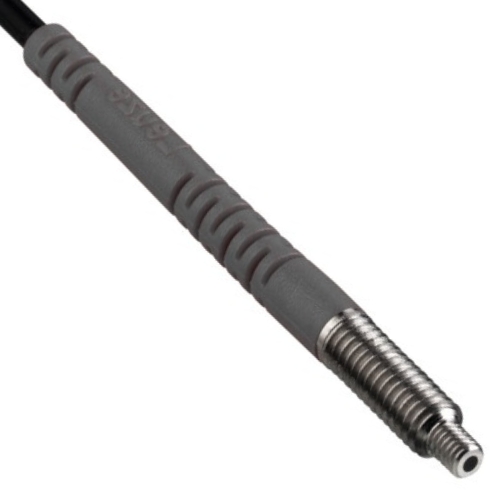

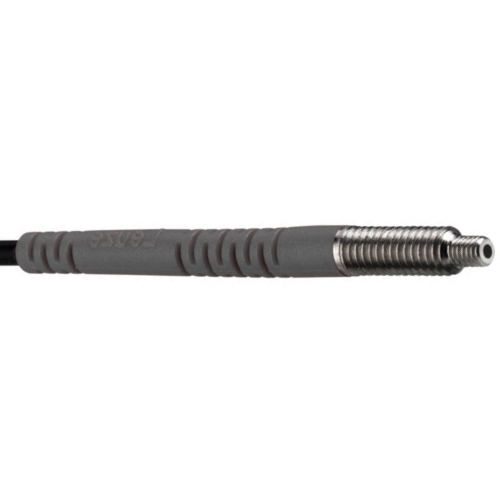

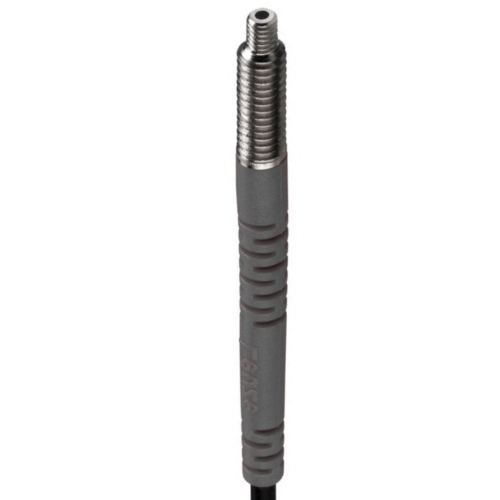

Leuze KFX‑ETC‑420 is a compact plastic fiber-optic diffuse-reflective sensor (2 m length, Ø 1.25 mm) featuring a coaxial multi-core fiber, front light beam exit, M4 mounting thread, and built-in bend protection. It reliably detects small objects (≥ 0.05 mm) over short ranges, making it ideal for scanner and automation applications.
Description
1. Type: Plastic fiber optics with bend protection (KFX). 2. Suitable for: Scanner operation. 3. Special Features: Injection-molded bending protection, lateral optics, cross-section converter, V-optics, attachment lens for greater ranges or higher precision. 4. Operating Principle: Diffuse reflection. 5. Fiber Core Configuration: Multiple fiber core, coaxial. 6. Metric Thread on Fiber Optic Sleeve: Yes. 7. Head Material: Stainless steel. 8. Light Beam Exit: Front.
1. Series: KFX 2. Operating Principle: Diffuse reflection 3. Application Area: General-purpose 4. Design: Cylindrical 5. Light Beam Exit: Front 6. Fiber Core Configuration: Coaxial, multiple fiber core 7. Fiber Core Material: Plastic 8. Minimum Detectable Object Diameter: 0.05 mm 9. Active Fiber Diameter: 0.25 mm 10. Damping at λ = 650 nm: 210 dB/km
