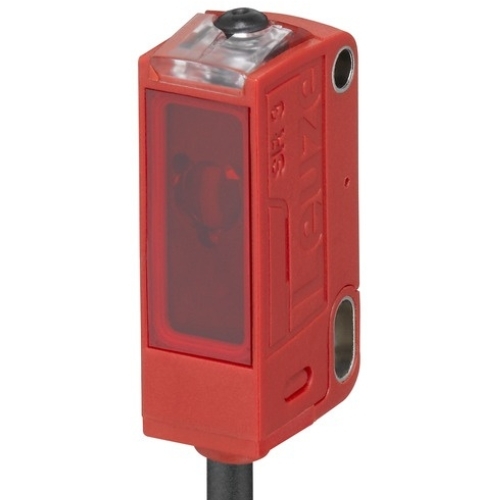

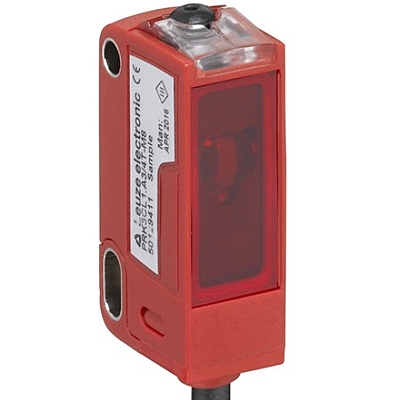

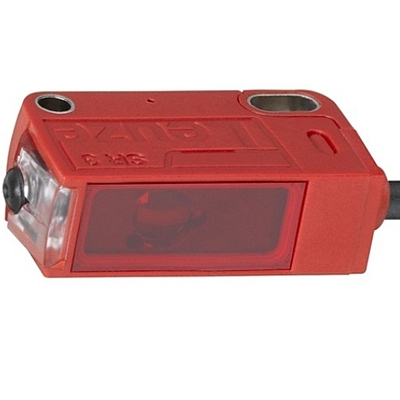

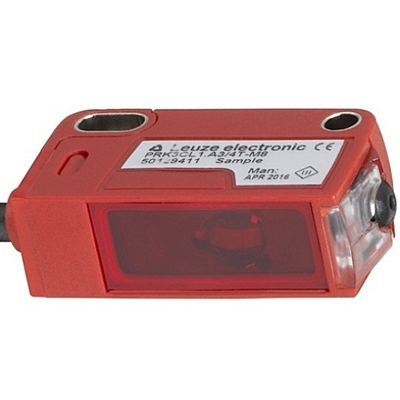

Leuze PRK3C.A3/4T - Polarized retro-reflective photoelectric sensor
Price:
₹4,200.00
Out of stock
Operating range0 ... 4 m, With reflector TK(S) 100x100
Description
1. Operating Principle: Reflection principle with autocollimation and teach input. 2. Operating Range: 0 to 4 meters with reflector TK(S) 100x100; maximum range up to 5 meters. 3. Light Source: Red LED with a wavelength of 635 nm. 4. Protection Class: IP67 and IP69K, ensuring high resistance to dust and water. 5. Compact and lightweight design for versatile use. 6. High switching frequency and fast response time for dynamic environments. 7. Cable: 2-meter PUR cable with 4 conductors (0.2 mm² cross-section).
1. Supply Voltage: 10–30 V DC (including residual ripple) 2. Current Consumption: Less than 20 mA (without load) 3. Output Type: Transistor, PNP 4. Switching Function: Light switching 5. Switching Frequency: 1,500 Hz 6. Response Time: 0.33 ms
