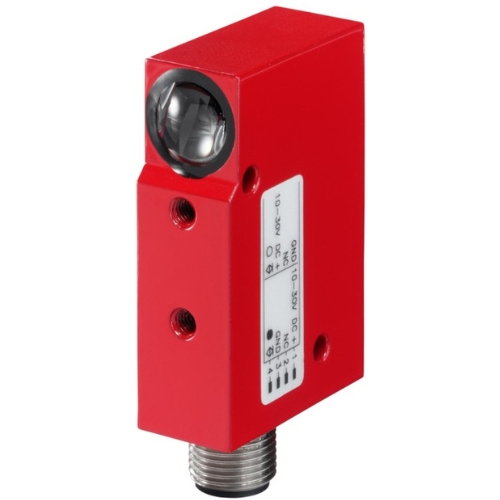

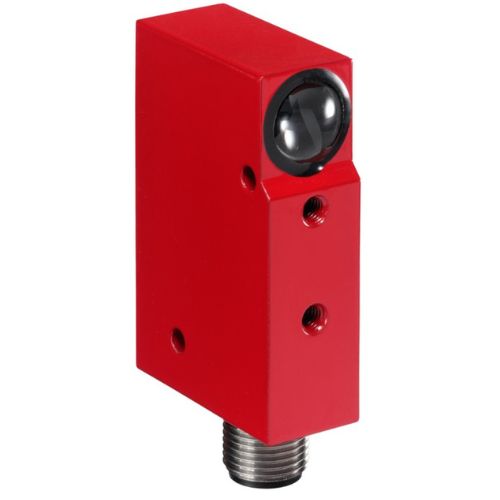

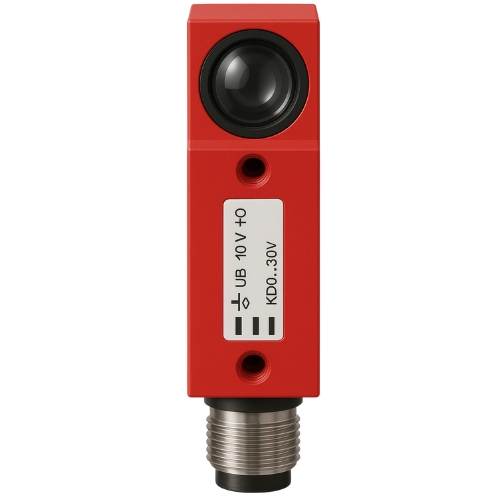

Leuze - IPRK 18/4 DL.41 Polarized retro reflective photoelectric sensor
Price:
₹33,198.00
Out of stock
Leuze - IPRK 18/4 DL.41 Polarized retro reflective photoelectric sensor
Customize
1. Operating Principle: Polarized retro-reflective with autocollimation. 2. Sensing Range: 0 to 3 meters (guaranteed), up to 4 meters (typical). 3. Light Source: Red LED (660 nm wavelength). 4. Switching Outputs: 2 PNP transistors- Output 1: Dark switching. Output 2: Warning output . 5. Autocollimation: Ensures precise alignment and detection. 6. Tracking Function: Compensates for contamination or aging. 7. Warning Output: Indicates signal degradation
1. Supply Voltage: 10 to 30 V DC 2. Current Consumption: ≤35 mA 3. Housing Dimensions: 15 mm (W) × 50 mm (H) × 33 mm (L) 4. Housing Material: Zinc die-cast with red coating 5. Lens Cover: Glass 6. Connection: 5-pin M12 male connector (A-coded, stainless steel) 7. Mounting Options: Threaded holes and through-hole mounting 8. Operating Temperature: -25°C to +55°C 9. Storage Temperature: -40°C to +70°C 10. Protection Ratings: IP67 and IP69K 11. Certifications: CE, cULus 12. Standards: Compliant with IEC 60947-5-2
