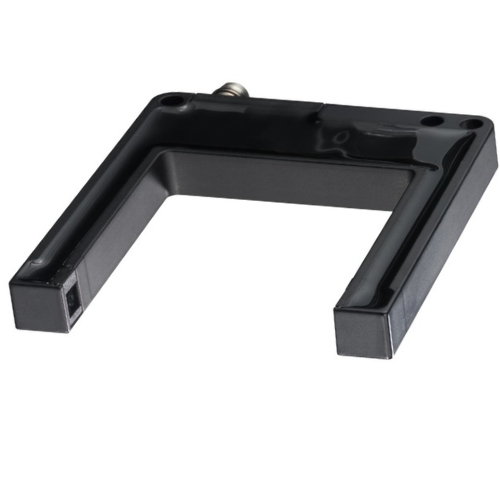

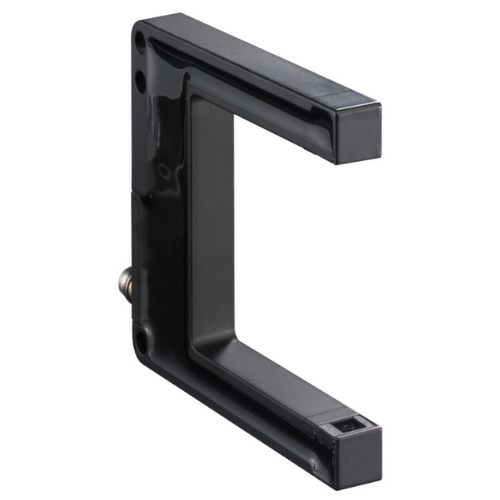

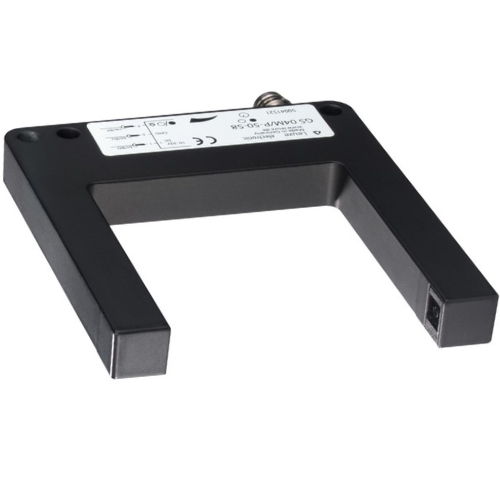

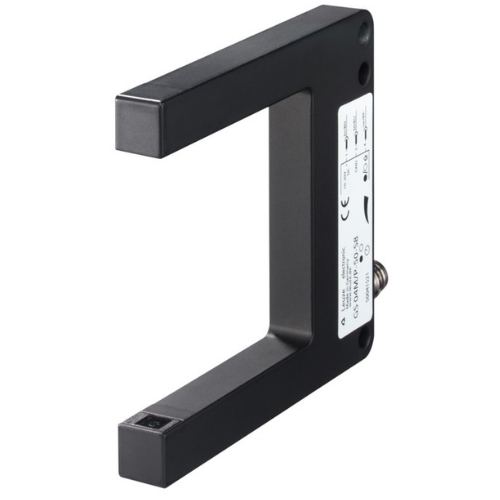

Leuze GS 04M/P-30-S8 - Forked photoelectric sensor
Price:
₹6,000.00
Leuze GS 04M/P‑30‑S8 is a fork-type photoelectric sensor with a 30 mm slot width, using a red LED and PNP transistor output, ideal for detecting small parts. It operates on 10–30 V DC, features adjustable sensitivity and light/dark switching via a 270° potentiometer, offers a fast 1 500 Hz switching frequency (0.33 ms response), and comes in a rugged die-cast zinc, IP67-rated housing with an M8 connector.
Description
1. Compact Design: Slim and efficient housing, ideal for tight spaces. 2. High Detection Accuracy: Precisely detects small parts using a red LED light source. 3. Fast Switching Frequency: Operates at up to 1,500 Hz, suitable for high-speed applications. 4. Easy Adjustment: Features a 270° potentiometer for simple sensitivity tuning. 5. Protective Circuits: Includes polarity reversal and short-circuit protection for secure operation. 6. LED Indicator: Provides clear visual feedback on the sensor’s operational status. 7. Ease of Installation: Through-hole mounting for stable and straightforward setup.
1. Supply Voltage: 10 to 30 V DC 2. Residual Ripple: 0 to 15% of UB 3. Open-Circuit Current: 0 to 35 mA 4. Switching Hysteresis: 100 µm 5. Switching Element: Transistor, PNP 6. Switching Principle: Light/dark switchable 7. Mounting Type: Through-hole mounting 8. Response Time: 0.33 ms 9. Switching Frequency: 1,500 Hz
