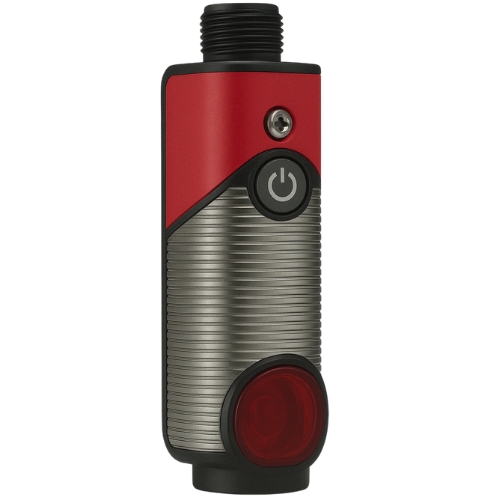

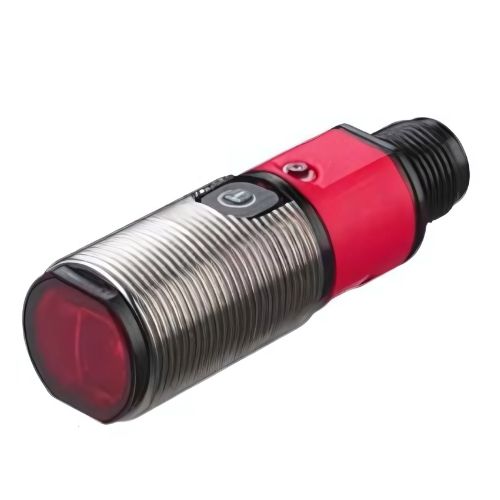

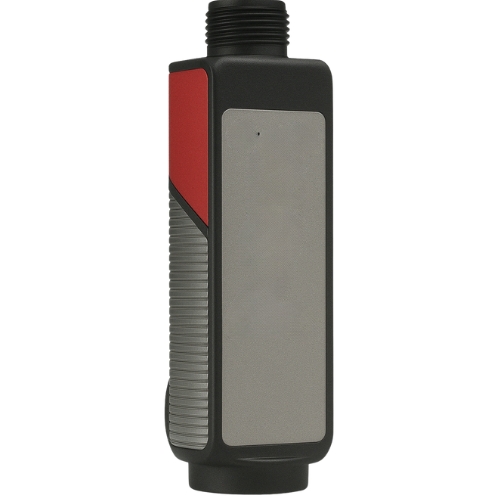

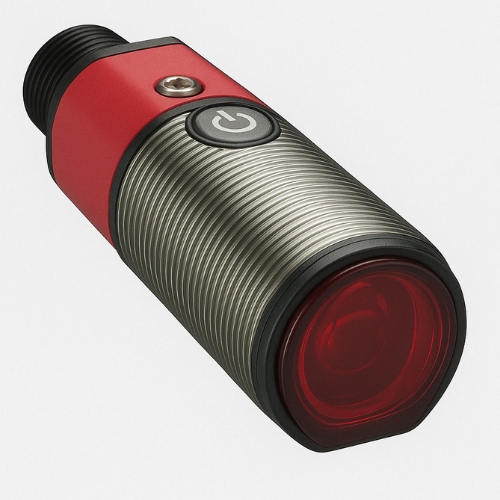

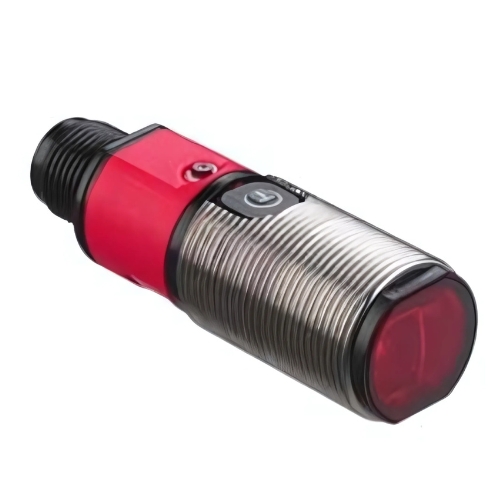

Leuze ET328.3/4P-M12 - Energetic diffuse sensor
Price:
₹2,580.00
Out of stock
Customize
1. Detection Range: 0.001–0.7 m (white 90%), up to 1 m max. 2. Light Source: Red LED (620 nm). 3. Switching Outputs: 2 PNP (light/dark switching). 4. Response Time: 1 ms; Frequency: 500 Hz. 5. Housing: ABS plastic & stainless steel (M18 × 1 thread). 6. Protection: IP67, short-circuit & reverse polarity protected. 7. Temperature Range: –40 °C to +60 °C. 8. Setup: Teach-in button with LED indicators.
1. Supply Voltage: 10–30 V DC 2. Output Current: 100 mA max per output 3.Connection Type: Connector 4. Function: Signal OUT, Voltage Supply 5. Type of Connection: M12, 4-pin, Male 6. Encoding: A-coded 7. Readiness Delay: 300 ms 8. Residual Ripple: 0% to 15% of Uₐ
