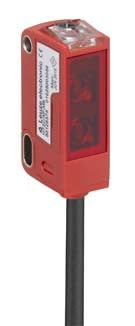

Leuze-Diffuse sensor with background suppression Cable HT3CL1/4P
Non-returnable
Price:
₹6,500.00
Product Details
1.Diffuse Sensing with Background Suppression Reliable detection of objects regardless of background conditions. Background objects are effectively suppressed even if highly reflective. 2.Laser Light Source Red laser (650 nm), Class 1 – safe for human eye. Small light spot (~1 mm), ideal for detecting small or narrow objects precisely. 3.Fast Response Time Ultra-fast switching frequency up to 3 kHz. Response time of just 0.16 milliseconds – suitable for high-speed applications. 4.Wide Sensing Range Adjustable detection range up to 400 mm (white targets). Reliable detection of black objects up to 170 mm. 5.Dual Digital Outputs 2 × PNP transistor outputs (light-switching and dark-switching). Can be used for multiple logic/control functions. 6.8-Turn Potentiometer Fine adjustment of sensing distance for optimal accuracy and repeatability. 7.Compact & Robust Design: Small cubic housing: 11.4 × 34.2 × 18.3 mm. IP67 and IP69K protection: suitable for harsh industrial environments (dustproof and water-resistant). 8.Integrated Protection Protection against: Overvoltage Reverse polarity Short circuits 9.Direct Cable Connection Comes with 2-meter long cable (4-wire) for easy installation without connectors. 10.Mounting Flexibility: Threaded M3 sleeves and optional mounting brackets for easy integration into machines or conveyors.
Black-white error less than 10% up to 170 mm Operating range Guaranteed operating range Operating range, white 90% 0.015 ... 0.4 m Operating range, gray 18% 0.015 ... 0.25 m Operating range, black 6% 0.015 ... 0.17 m Operating range limit 0.015 ... 0.4 m Operating range limit Typical operating range Adjustment range 20 ... 400 mm Beam path Collimated Light source Laser, Red Wavelength 650 nm Laser class 1, in accordance with IEC 60825-1:2014 (EN 60825-1:2014) Light spot size [at sensor distance] 1 mm [400 mm] 1.Supply voltage: 10 – 30 V DC 2.Current consumption: Documented internally; typical low current 3.Outputs: 2 × PNP transistor outputs (one light-switching, one dark-switching) 4.Protection: Overvoltage, reverse polarity, and short-circuit protection Type of light spot geometry Round Shift angle Typ. ± 2°
