Leuze- Stationary 2D-code reader, Cat No- DCR202iFIX-M1-102-R3
Non-returnable
Price:
₹111,663.00

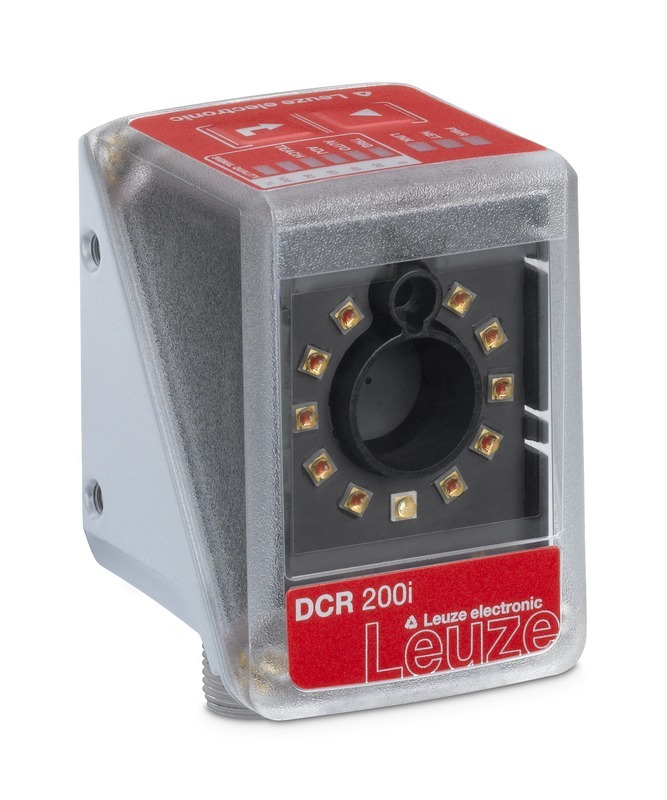

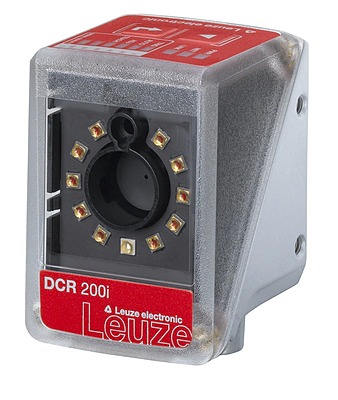

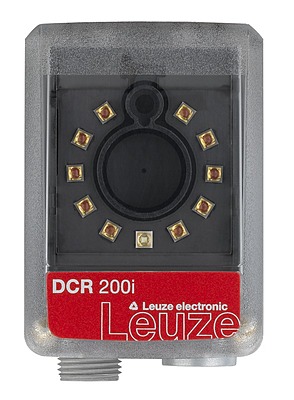

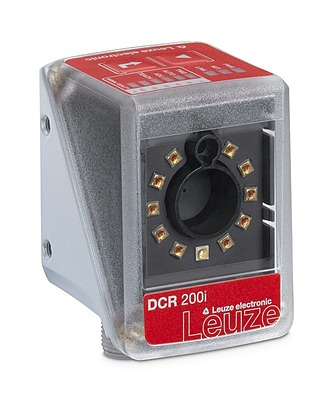

Leuze DCR 202i FIX‑M1‑102‑R3 is a stationary 2D-code reader featuring a 1,280 × 960 CMOS global-shutter camera with up to 50–220 mm read range. It decodes a wide variety of 1D/2D codes (e.g., Data Matrix, QR, PDF417). The unit supports Ethernet, RS‑232, and RS‑422 communication, operates on 18–30 V DC (~8 W), and comes in a rugged IP65 die-cast housing, ideal for industrial automation settings.
Description
1. Code Reading Capabilities: Supports a wide range of 1D and 2D codes, including Code 39, Code 128, Data Matrix, QR code, PDF417, and more. 2. Reading Distance: Effective reading range from 50 mm to 220 mm, accommodating various code sizes and positions. 3. Reading Distance: Effective reading range from 50 mm to 220 mm, accommodating various code sizes and positions. 4. Interfaces: a. Communication: Ethernet (TCP/IP, UDP), RS 232, and RS 422 for flexible integration. b. Service Interface: Ethernet for configuration and diagnostics. 5. Configuration Options: Supports configuration via teach-in, configuration codes, or web browser interface, simplifying setup and adjustments.
1. Type: Stationary 2D code reader 2. Series: DCR 200i 3. Sensor: CMOS with global shutter 4. Camera: Monochrome, 1280 × 960 pixels 5. Supply Voltage: 18 to 30 V DC 6. Power Consumption: 8 W 7. Digital Inputs: 1 8. Digital Outputs: 1 (MOSFET, max. 100 mA) 9. Configurable I/Os: 2 10. Reading Distance: 50 to 220 mm 11. Light Source: Red LED, pulsed 12. Modulus Size: 0.19 to 0.5 mm 13. Shutter Speed: 0.068 to 5 ms 14. 1D Codes: Code 39, Code 128, EAN-13, UPC, etc. 15. 2D Codes: Data Matrix, QR Code, PDF417, Aztec, etc.
