Leuze CRT 448.S3/444-M12 color sensor
Price:
₹42,697.20
Out of stock

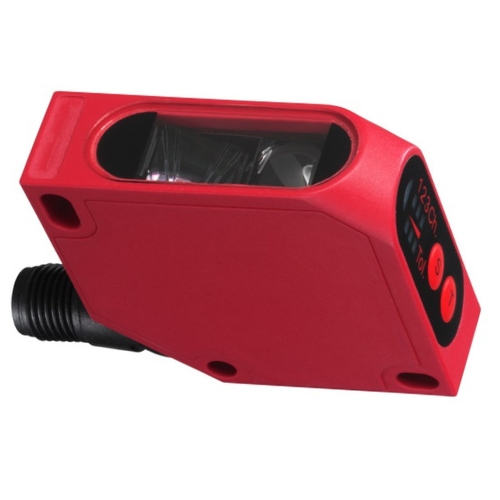

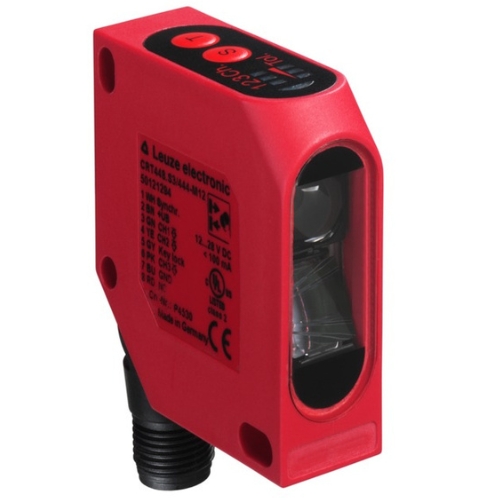

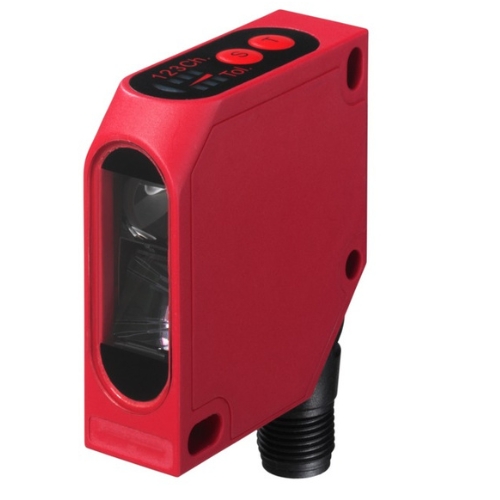

Leuze CRT 448.S3/444-M12 - Color sensor
Customize
1.Multi-Color Detection: Capable of detecting three colors simultaneously, making it ideal for sorting, quality control, and marking applications. 2.Scan Functionality: Equipped with a scan function to handle color gradients effectively. 3.Adjustable Color Tolerance: Allows separate adjustment of color tolerance for each color channel. 4.Synchronization Input: Includes a synchronization input for coordinated operation with other sensors. 5.Simple Teach-In: Features an easy-to-use teach-in process for setting reference colors. 6.Compact Design: Small cubic housing facilitates integration into tight spaces. 7. M12 Connector: Comes with an 8-pin M12 connector for reliable electrical connections.
1.Operating Range : 12 to 32 mm 2.Light Source :White LED 3.Light Spot Size :4 mm 4.Light Spot Geometry :Round 5.Supply Voltage 12 to 28 V DC 6.Switching Outputs :3 x PNP Transistor 7.Switching Frequency :500 Hz 8.Teach Inputs :1 9.Housing Material :ABS Plastic 10.Degree of Protection :IP 67 11.Operating Temperature :-10 to 55°C 12.Dimensions (W x H x L) :17 mm x 50 mm x 50 mm Weight :40 g
