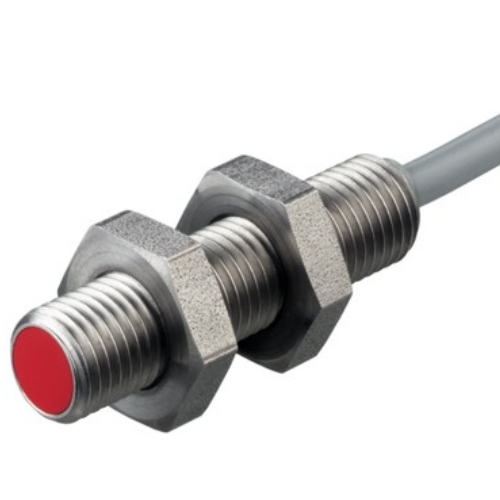

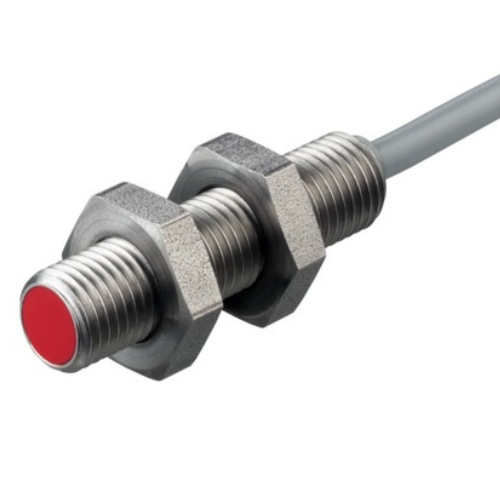

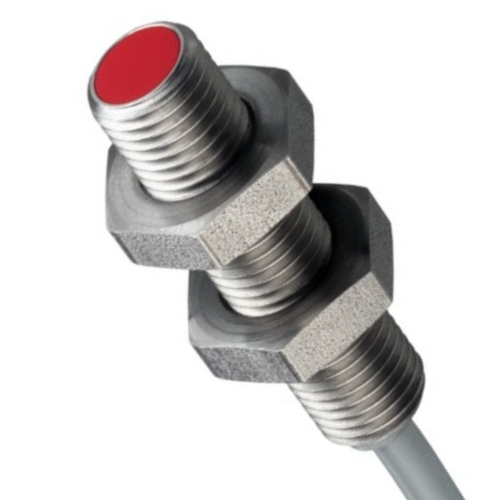

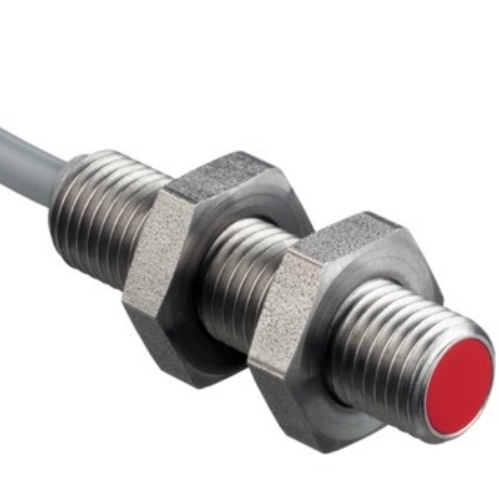

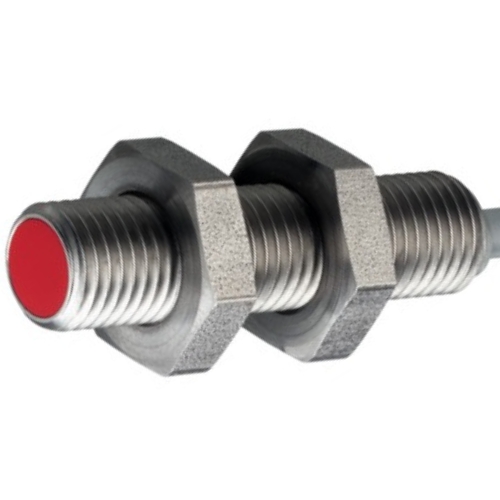

IS 108 MM/2NO-2E0 Inductive switch
Price:
₹585.00
Out of stock
Customize
1. High Switching Frequency: Up to 3,000 Hz for fast detection. 2. EMC Compliance: Ensures stable operation in electrically noisy environments. 3. Encapsulated Design: Offers vibration resistance. 4. Protection Features: Includes reverse polarity and short-circuit protection. 5. Flush Mounting: Ideal for installations in confined spaces. 6. LED Status Indicator: Easy to monitor operational status with the built-in LED. 7. Compact Cylindrical Design: Space-efficient, with an 8 mm diameter and 45 mm length.
1. Sensing Distance: 2 mm (standard) 2. Switching Output: NPN, Normally Open (NO) 3. Supply Voltage (Uᵦ): 10–30 V DC 4. Switching Current (max.): 100 mA 5. Switching Frequency: 3,000 Hz 6. Housing Design: Cylindrical M8 x 1 mm thread 7. Housing Material: Nickel-plated brass 8. Connection: 2 m PVC cable, 3-wire 9. Protection Class: IP67 10. Operating Temperature: -25°C to +70°C 11. Mounting Type: Flush (embedded) 12. Standard Target: 8 × 8 mm², Fe360 steel 13. Certifications: IEC 60947-5-2 compliant 14. Special Protections: Short-circuit, overload, reverse polarity protection 15. LED Indicator: 1 integrated status LED
