Control Techniques- VFD C200 series 3 Ph. 1.5 kW 380/480 Vac ±10%
Price:
₹15,480.00

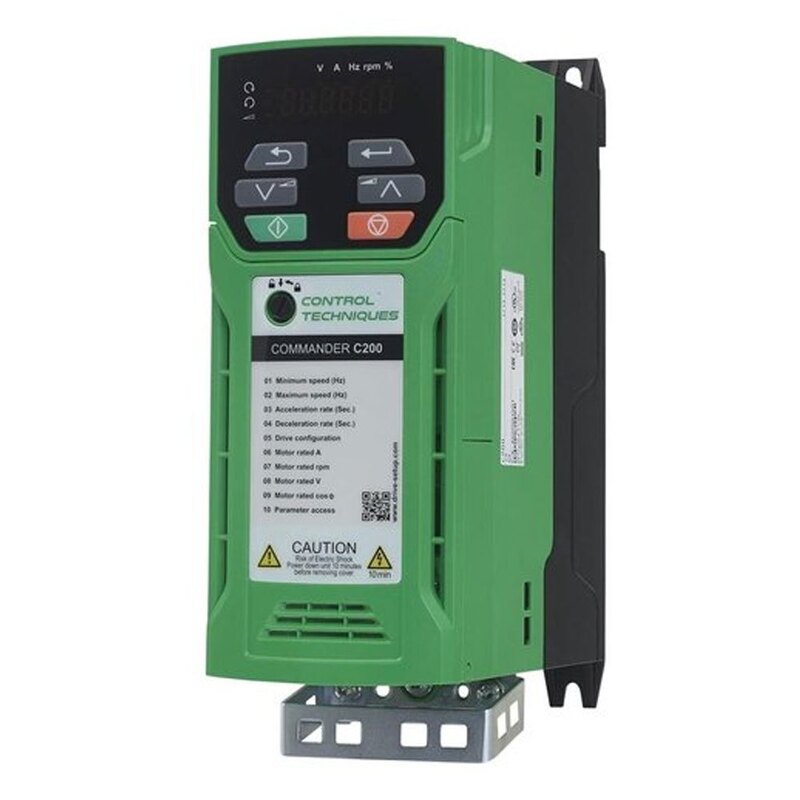

Control Techniques C200 is a compact 1.5 kW (2 HP) VFD operating on 3-phase 380–480 V AC ±10%. It delivers up to 4.1 A continuous, supports 0–550 Hz speed control in open-loop V/f or RFC‑A modes, features an onboard PLC and PID logic, and includes Modbus, Ethernet, Profibus, CANopen via optional plug-in modules. Built into a rugged IP20 enclosure (~205 × 75 × 150 mm, 1.3 kg), with 150 % overload for 60 s and 180 % for 3 s, it's ideal for general industrial machinery like conveyors, pumps, and fans.
Description
1. Enables precise motor control without the need for encoders, maintaining consistent torque and speed even under varying loads. 2. Automatically adjusts motor voltage to enhance energy efficiency, reducing operating costs. 3. The drive interface supports various languages for global usability. 4. Simplifies commissioning by automatically identifying motor parameters. 5. Reduces electromagnetic interference, meeting global compliance standards for reliable operation. 6.Includes Safe Torque Off (STO) functionality for enhanced safety during maintenance. 7. Compact and Reliable Design.
1. Input Voltage: 380–480 VAC, three-phase, ±10% 2. Power Rating: 1.5 kW (2 HP) 3. Output Current: 4.1 A 4. Overload Capability: 150% of rated current for 60 seconds 5. Built-in PLC functionality for custom control programming
