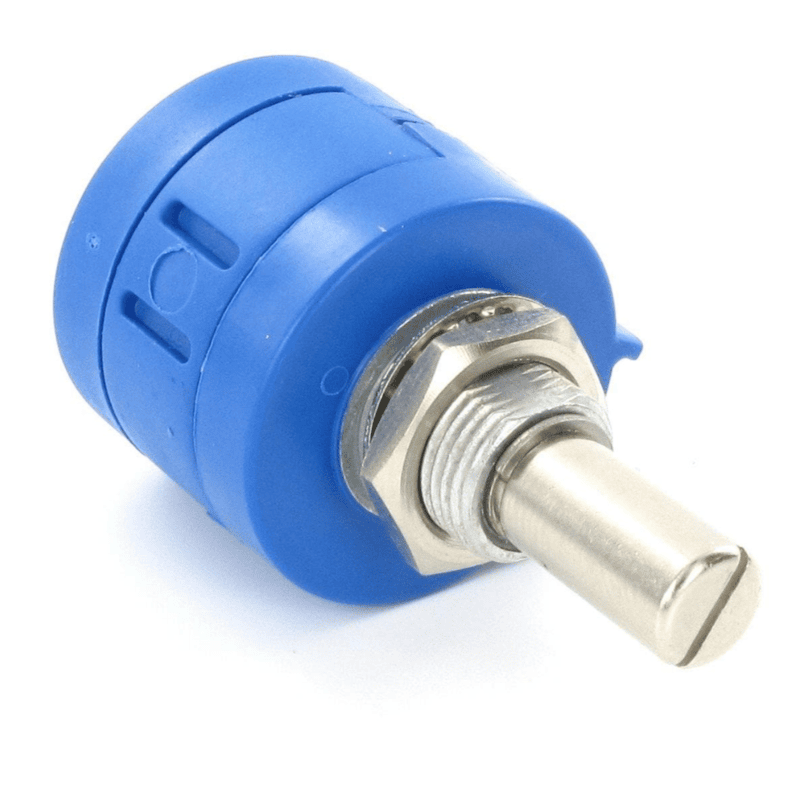

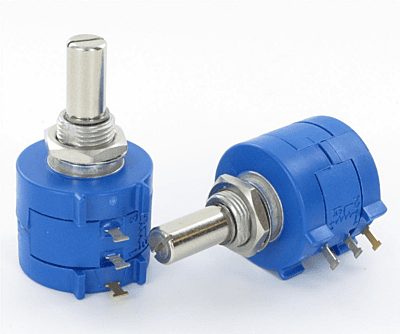

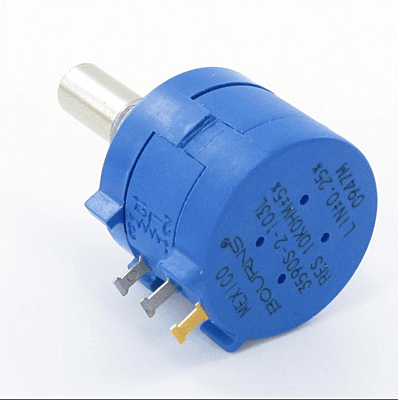

BOURNS POTENTIOMETER 10K Ohm, 2Watt
Non-returnable
Price:
₹210.00 ₹320.00 (35% Off)
Out of stock
Customize
1. High Precision: 10-turn design for fine resistance adjustment. 2. Durable Construction: Wire wound resistive element for stability and longevity. 3. High Power Rating: Supports up to 2 watts, making it suitable for high-power applications. 4. Smooth Operation: Plastic shaft with a smooth surface for easy manual adjustment. 5. Panel Mountable: Comes with a 3/8-32 bushing thread for secure installation. 6. Solder Lug Terminals: Easy to connect to circuits with soldering. 7. High Insulation Resistance: Minimizes leakage currents and ensures reliable operation. 8. IP40 Rated: Provides basic protection against dust and small particles.
1. Resistance: 10 kΩ 2. Power Rating: 2 W 3. Tolerance: ±5% 4. Temperature Coefficient: ±50 ppm/°C 5. Number of Electrical Turns: 10 6. Linearity Tolerance: ±0.25% 7. Insulation Resistance: Minimum of 1 GΩ 8. Shaft Diameter: 6.35 mm 9. Shaft Material: Plastic 10. Body Dimensions: 22.22 mm diameter x 18.6 mm length 11. Mounting Type: Panel mount with 3/8-32 bushing thread
