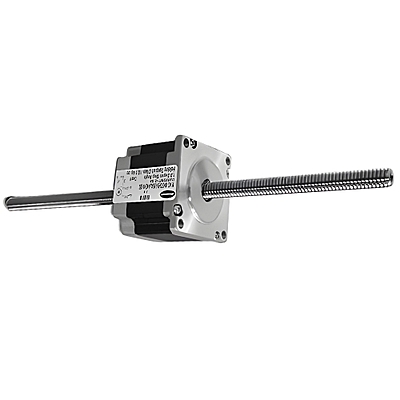

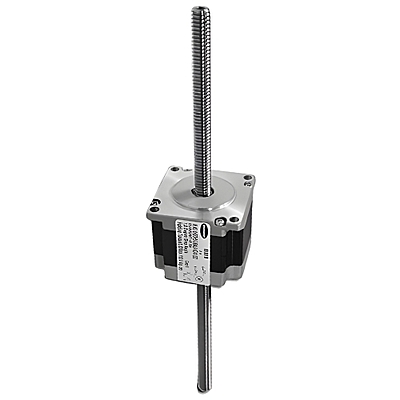

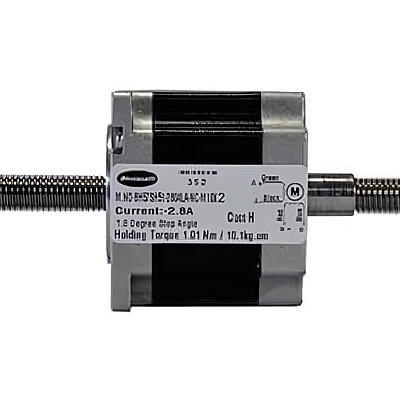

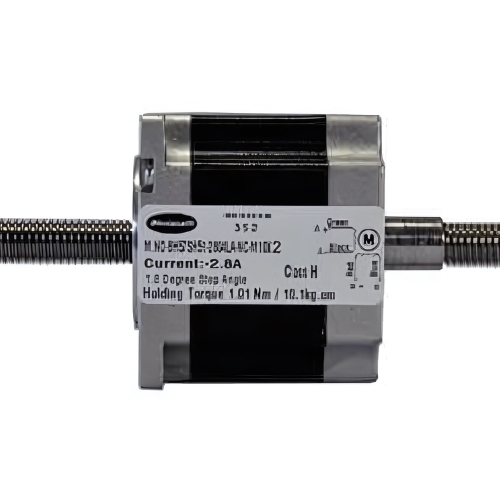

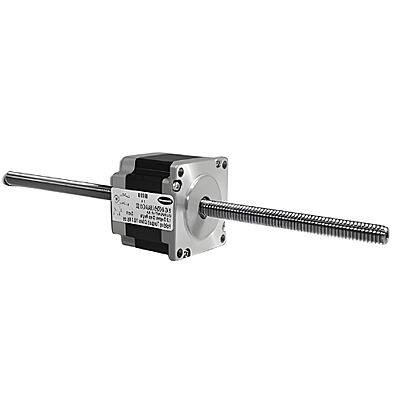

Name: 10.1 kg cm NON CAPTIVE LINEAR ACTUATOR STEPPER MOTOR (2.8 Amp Motor) - M10X2
Brand: Bholanath
SKU: BH57SH51-2804LA-NC-TR8X8
Price: 10643.0 INR
Availability: InStock

10.1 kg cm NON CAPTIVE LINEAR ACTUATOR STEPPER MOTOR (2.8 Amp Motor) - M10X2

Price:

₹10,643.00 ₹17,030.00 (38% Off)

Product Details

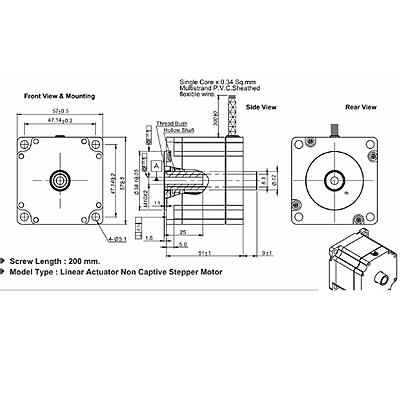

• Description : 1.8⁰ Non Captive Linear Actuator Stepper Motors High Torque Hybrid, BH57SH51-2804 LA-NC-TR8X8, NEMA 23(57 mm) Frame size, Bipolar (4 leads), Holding Torque 10.1 kgcm (1.01 Nm), Current per phase 2.8 Amp, Motor length 51 mm, 300mm Wire Length, Operating Voltage 12 - 24 VDC. Linear Step Size - 40 Microns Per Full Step, Pitch - TR8X8

• Product Full Name : 10.1 kg cm NON CAPTIVE LINEAR ACTUATOR STEPPER MOTOR (2.8 Amp Motor) - M10X2

Product Datasheet

Quantity:

+ Add to Cart
